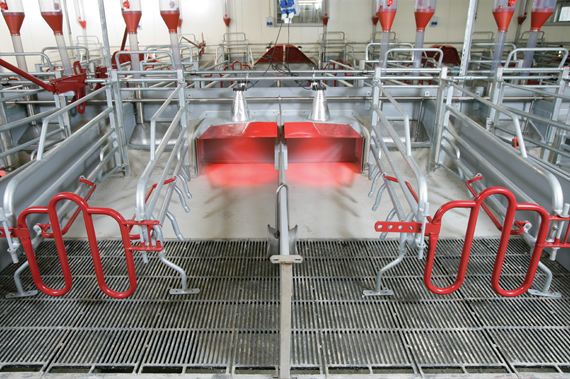

Farrowing pen


Egebjerg Faresti med fareboks XL

More weaned piglets and a higher weaning weight

Room for natural behaviour = durable sows

Work efficient

Facts

Farrowing pen
Pen length 250-270 cm
Pen width 160-180 cm
Pen height 50 cm
Profiles 35 x 500 mm
Farrowing crate XL
Length from the back side of the trough 200-210 cm
Inner width, front 52-61 cm
Inner width at rear gate, multi adjustable: 57-85 cm
Height pen side 90 cm
Tower 40 x 40 x 4 mm
Pen side 33,7/42,4 x 2,65 mm rør
Volume, stainless steel trough 21 liter
Creep box, width 80 or 90 cm
Creep bow, space 0,7 or 0,8 m2
Water
Water supply 1" stainless steel or galvanized pipe
Water pipes for sow 23 mm stainless steel pipe, stainless steel bracket and drill clamp
Nipple for sow Stainless steel stem nipple, 13 litres/ minute
Water supply, piglets VIP-O-MAT® with flexible and easy to clean PE-hose and hose protection in plastic









Many weaned piglets, high weaning weight



The Farrowing crate is adapted to the anatomy of the sow and can be adjusted to her size. This provides safe farrowing, getting up and lying down.

The design of the crate sides ensures the piglets' free access to the utter.

The tiltable wings minimize the risk of piglets being crushed.

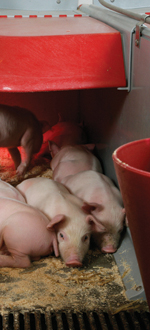

The largest creep box on the market: room for all the piglets.









Work efficient



The farrowing crate comes in CLEAN-O-FLEX® with smooth, easy to clean surfaces and rounded corners that minimize the risk of accumulating dirt.

Unique sow trough

The design and the mounting of the sow trough allows limited or no casting, allowing the sow to use the space underneath.

Durable sows

Maximum feed and feed intake: large hygienic trough and protection pipes prevent feed waste.

The design of the crate makes it easy for the sow to get up.




Easy adjustment



EASY JUST®

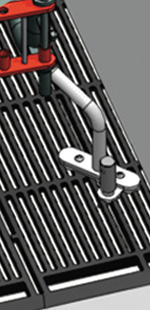

The farrowing crate is normally bolted to the slat floor.

Egebjerg has developed a new spring-loaded hook bolt that offers the opportunity to adjust the distance between the pen side and the crate thus adapting the area to the size of the piglets.
